Dovetail Triangular Veneer Anchor (103-C) Veneer Anchoring System Heckmann

Roll over image to zoom in

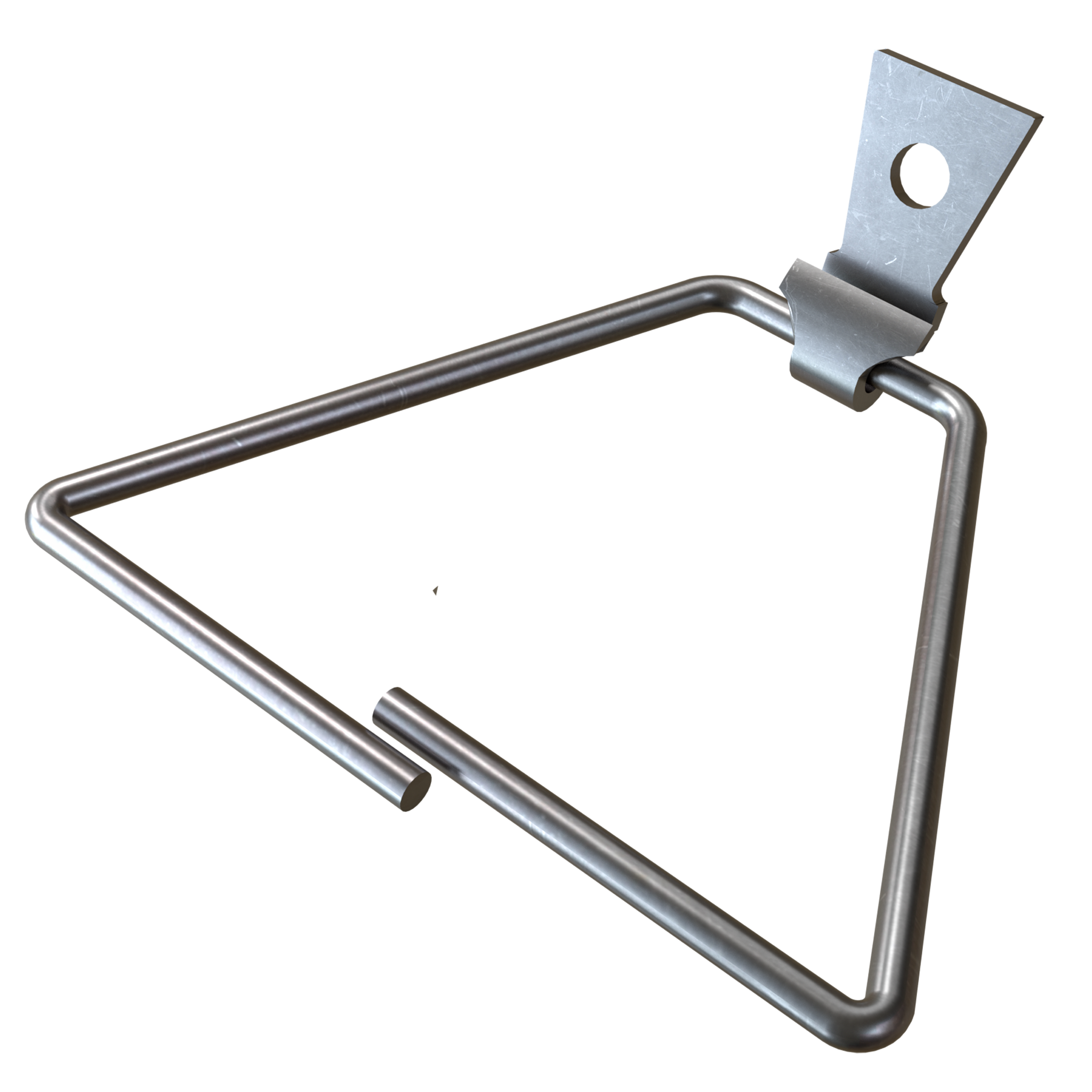

Dovetail Triangular Veneer Anchor (103-C)

One-piece, non-adjustable anchors used for attaching brick veneer to an existing concrete wall which contains Standard 1" deep x 1" wide dovetail slot with a 5/8" throat at the face of concrete.

This can also be used as an adjustable veneer anchor with concrete walls containing #100 Dovetail Anchor Slot.

Pack Price

$330.00

Quantity

USA

ENGINEERED IN THE USA
Special Order - Ships Fast
Special order items are usually shipped within 1-5 days. Please contact us for an updated lead time. In most cases items are in stock. If an item is out of stock we can produce the part quickly for your project. When you place an order, we will notify you immediately with an updated lead time.

Materials / Finishes

Open Icon Close Icon
  • 304 Stainless Steel
  • Hot-Dip Galvanized After Fabrication

Features and Benefits

Open Icon Close Icon
  • One-piece construction
  • Non-adjustable
  • 12 gauge dovetail clip attached to 3/16” diameter triangle wire tie
  • Standard 1" deep x 1" wide dovetail slot with a 5/8" throat at the face of concrete.

Downloads

Open Icon Close Icon

 Specification PDF
  Specification Doc
 Submittal Sheet
 2D CAD details
 3D CAD details

Product Details
Installation
Catalog No.
Material
Tie Length (in.)
Hole Dia. (in.)
Clip Thickness (gage)
Box Quantity
103-C3H
Hot-Dipped Galvanized
3
5/16
12
250
103-C4H
Hot-Dipped Galvanized
4
5/16
12
250
103-C5H
Hot-Dipped Galvanized
5
5/16
12
250
103-C6H
Hot-Dipped Galvanized
6
5/16
12
250
103-C7H
Hot-Dipped Galvanized
7
5/16
12
200
103-C3S
304 Stainless Steel
3
5/16
12
250
103-C4S
304 Stainless Steel
4
5/16
12
250
103-C5S
304 Stainless Steel
5
5/16
12
250
103-C6S
304 Stainless Steel
6
5/16
12
250
103-C7S
304 Stainless Steel
7
5/16
12
250

Insert anchor at desired height into Dovetail Anchor Slot. Turn 90 degrees to lock into the slot. Place mortar above and below anchor in the mortar joint.
