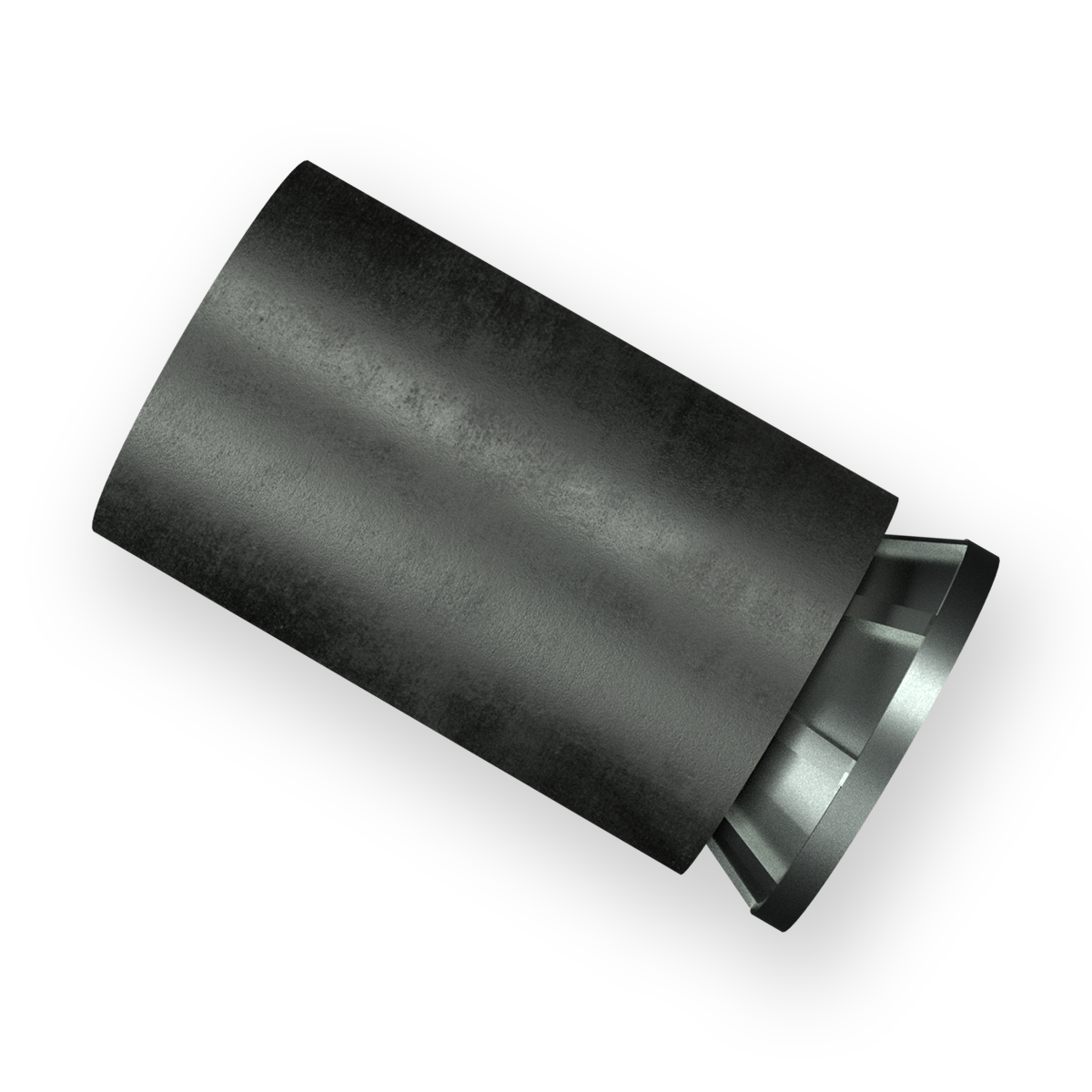

Machine Screw Shield- Zamac Alloy Mechanical Anchors Wej-It

Roll over image to zoom in

Machine Screw Shield — Zamac Alloy - Caulk-In Anchors

Our Machine Screw Shield can be used with machine screws in most masonry materials, including concrete, block, brick, and stone. SETTING TOOLS SOLD SEPARATELY

Pack Price

$24.50

Quantity

USA

ENGINEERED IN THE USA
Ships Fast within 24 hours
Orders received before 2:00pm EST Monday through Friday usually ship the same business day. We will send an email confirming your order the day your order is received. When your order ships we will send you a second email with your paid invoice and information to track your order.

Installation will require the following items:

Machine Screw Shield- Setting Tools

Materials / Finishes

  • Zamac alloy cone with lead sleeve

Features and Benefits

  • Versatile for use in normal weight concrete and solid masonry
  • Corrosion-resistant
  • Shallow embedment
  • Accepts machine screws
  • Bolt can easily be removed during service work without replacing the anchor

Downloads

Technical Flyer

Product Details
Installation
Catalog Number
Drill Bit Dia.
Thread Size
Anchor Length
Box Quantity
Carton Quantity
MS14
1/2
1/4 - 20
7/8
100
2000
MS56
5/8
5/16 - 18
1
50
1000
MS38
3/4
3/8 - 16
1-1/4
50
500
MS12
7/8
1/2 - 13
1-1/2
25
250

  1. Drill the hole equal to the nominal diameter of the anchor. To assure full holding power, do not ream the hole or allow the drill to wobble.
  2. Drill the hole deeper than the intended embedment, but not closer than two diameters to the bottom (opposite) surface of the concrete.
  3. Clean the hole with a nylon brush and compressed air.
  4. Insert anchor into the hole.
  5. Using setting tool, drive expander shield over cone.
  6. Position fixture, insert fastener and tighten.

NOTE: Always wear safety glasses. Follow drill manufacturer's instructions. Use only solid carbide-tipped drill bits meeting ANSI B212.15 diameter standards.
