Original Pos-I-Tie® System #75

Original Pos-I-Tie® System #75

The Original Pos-I-Tie® is a two-piece system for attaching brick and stone veneer to various existing backups. It simultaneously penetrates the exterior insulation, makes positive contact with the backup for transfer of lateral loads, and seals the hole in the insulation with an EPDM washer under the barrel head.



Does your wall require a Thermal Break?

View the ThermalClip® Pos-I-Tie System

Engineered in the USA

Installation will require the following items:

Pos-I-Tie Installation Tools

Features and Benefits

Open Icon Close Icon
  • Incorporates a barrel-screw piece for easy installation using an ordinary drill with a special chuck adapter
  • Integrated screw prevents substitution and use of inferior screws
  • Doubles as an insulation fastener and a masonry anchor, reducing the number of penetrations in insulation
  • Installs safely with a rounded head and round chuck adapter, keeping fingers out of harm’s way

Compatible with all back-up walls

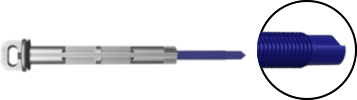

Self-Drilling Screw

Used for: steel stud 18 ga – 14 ga

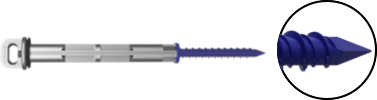

Concrete/CMU Screw

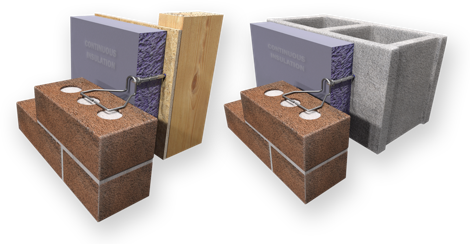

Used for: concrete, CMU, wood, brick, ICF

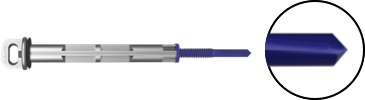

Structural Screw

Used for: structural steel

Only available directly from HeckmannBuildingProds.com

Build your Pos-I-Tie System

#75 Original Pos-I-Tie® System

Does your wall require a Thermal Break? View the ThermalClip® Pos-I-Tie System

1: Barrel Screws

Select the proper screw type, length, and box quantity (250 Barrel Screws per box)

Select Barrel Substrate

CMU/Concrete/Wood

Steel Studs

Barrel
Length

Cost

Box Quantity
(250 per box)

5/8" [250 pack]
1" [250 pack]
1-1/2" [250 pack]
2" [250 pack]
2-1/2" [250 pack]
3" [250 pack]
3-1/2" [250 pack]
4" [250 pack]
4-1/2" [250 pack]
2: #610 ThermalGrip® 2" CI Washer (optional)

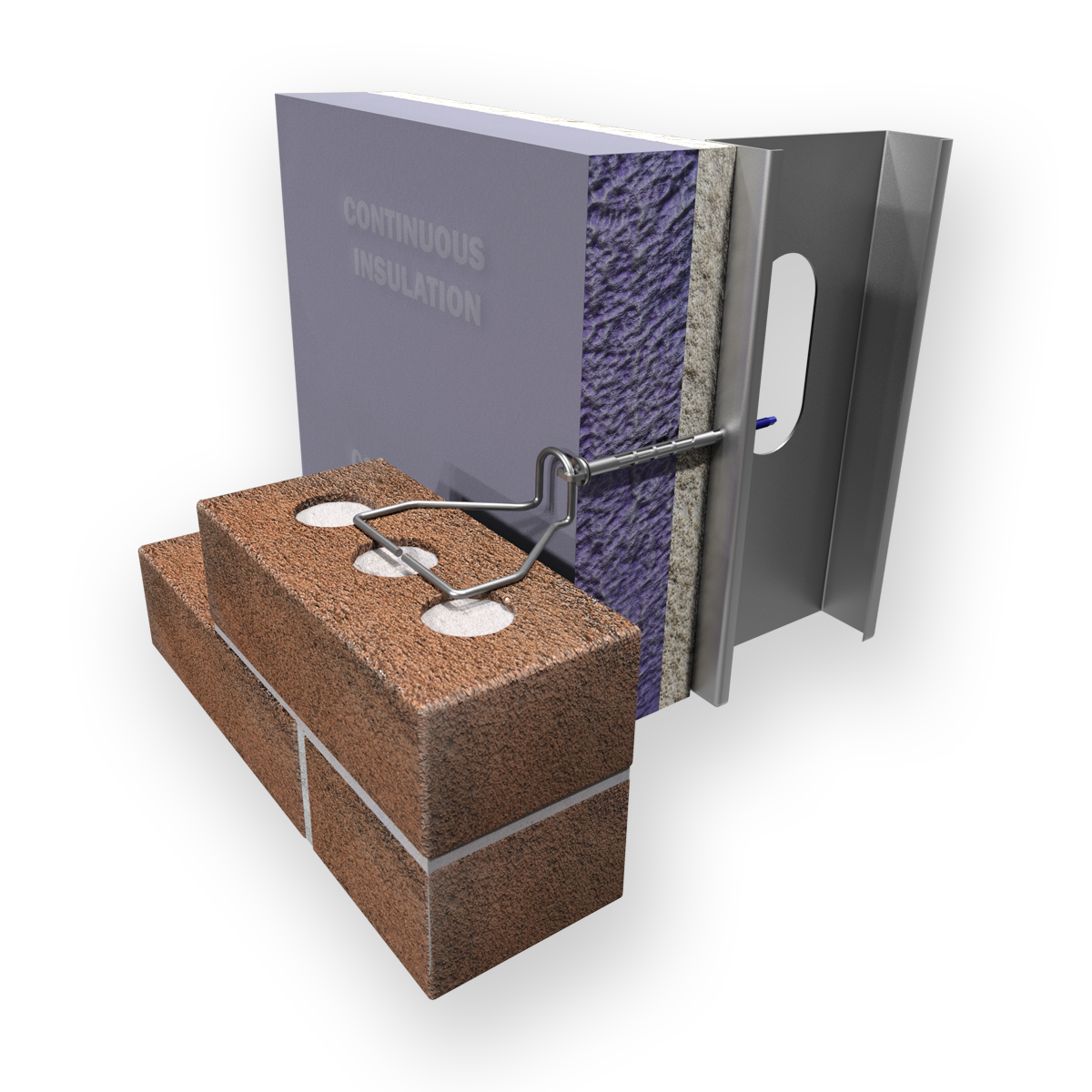

For walls with Continuous Insulation

Pos-I-Tie ThermalGrip® CI Washers (610) Veneer Anchoring System Heckmann

Box Quantity (1000 per box)

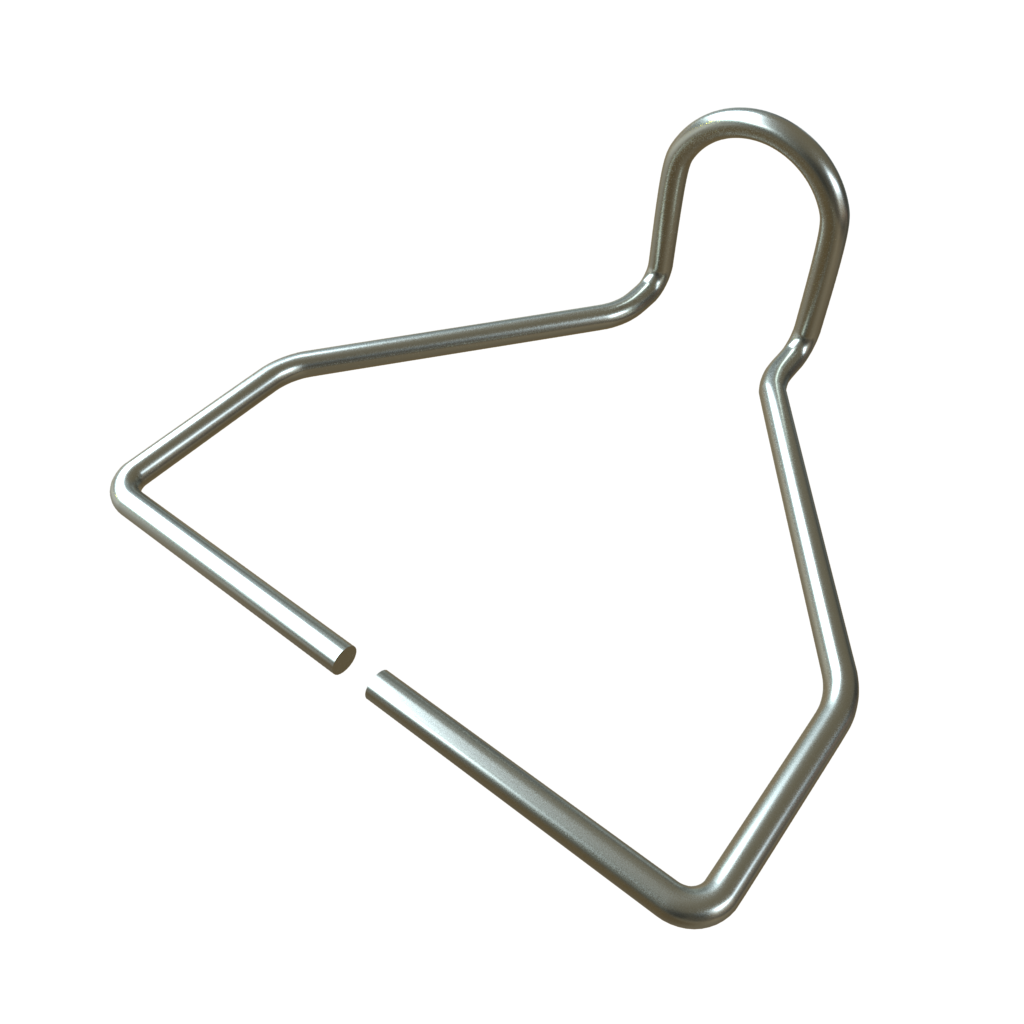

3: Wire ties

Used with Original Barrel Screw only

Pos-I-Tie Triangle Wire Ties Veneer Anchoring System Heckmann

Steel type

304 Stainless Steel
Hot-Dip Galvanized

Length

Cost

Box Quantity
(250 per box)

3" [250 pack]
3-1/2" [250 pack]
4" [250 pack]
5" [250 pack]
6" [125 pack]
7" [125 pack]

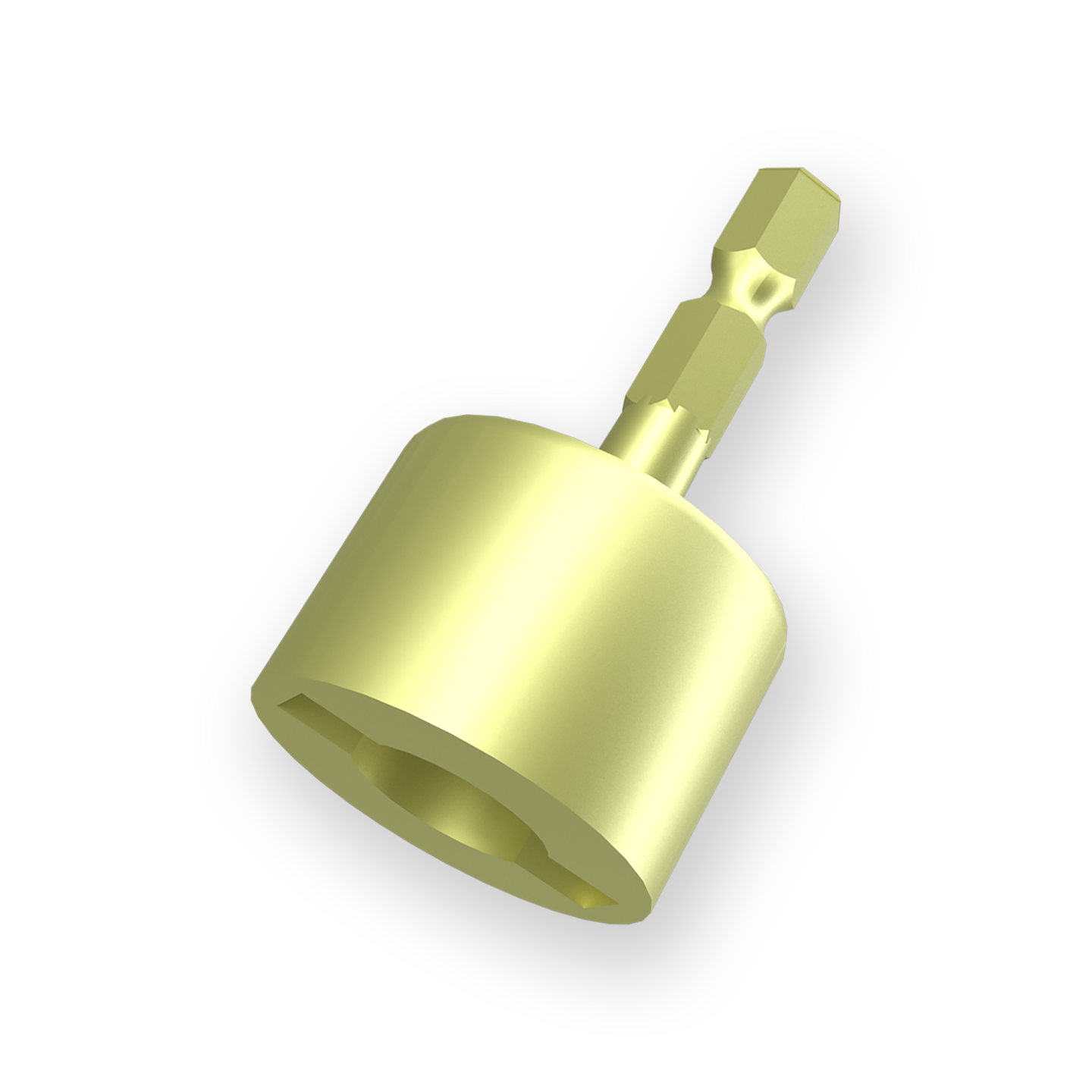

4: Installation Tool (optional)

Chuck tool for faster installation

Pos-I-Tie® Installation Tools

Quantity
