Screw-On Anchor Plate (315-D) Veneer Anchoring System Heckmann

Roll over image to zoom in

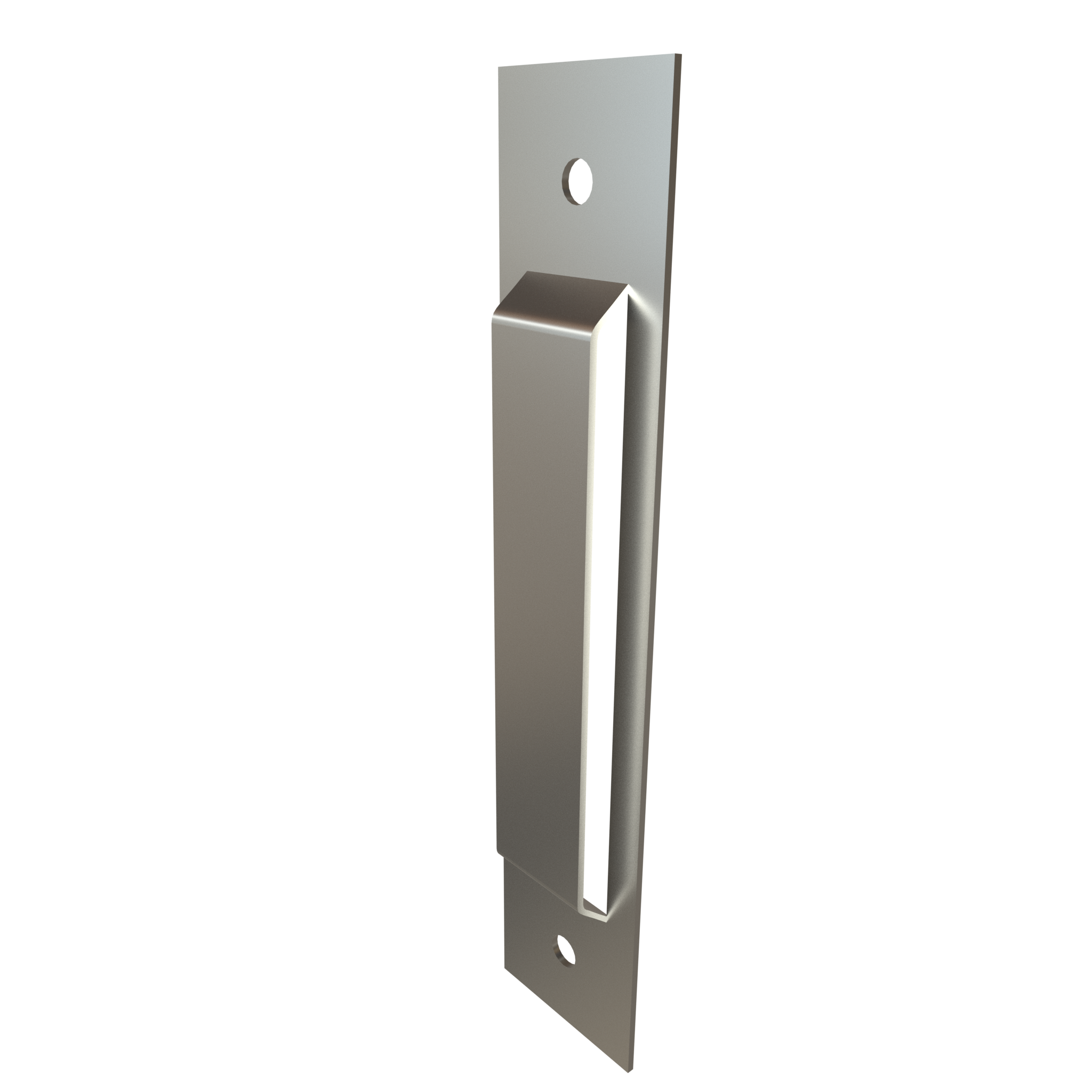

Screw-On Anchor Plate (315-D)

The Screw-On Anchor Plate is used for attaching brick veneer to a masonry backup wall with appropriate fasteners. Use #316 Triangle Wire Ties for anchoring the masonry veneer.

Pack Price

$425.00

Quantity

USA

ENGINEERED IN THE USA
Special Order - Ships Fast
Special order items are usually shipped within 1-5 days. Please contact us for an updated lead time. In most cases items are in stock. If an item is out of stock we can produce the part quickly for your project. When you place an order, we will notify you immediately with an updated lead time.

Materials / Finishes

Open Icon Close Icon
  • 304 Stainless Steel
  • Hot-Dip Galvanized After Fabrication

Features and Benefits

Open Icon Close Icon
  • Screw onto structural columns for adjustable attachment of masonry/veneer walls
  • Two-piece, adjustable anchors
  • Use #316 Triangle Wire Ties
  • Thickness: 12 - 16 gauge
  • Holes: ¼” diameter

Downloads

Open Icon Close Icon

 Specification PDF
 Specification Doc
 Submittal Sheet
 2D CAD details
 3D CAD details

Product Details
Installation
Catalog No.
Material
Thickness (Gauge)
Width (in.)
Length (in.)
Hole Dia. (in.)
Vertical Adjustment (in.)
Box Quantity
315-D2HS
Hot-Dip Galvanized
12
1-1/4
6
1/4
4
250
315-D4HS
Hot-Dip Galvanized
14
1-1/4
6
1/4
4
250
315-D2SS
304 Stainless Steel
12
1-1/4
6
1/4
4
250
315-D4SS
304 Stainless Steel
14
1-1/4
6
1/4
4
250

Install as specified in applicable masonry section(s).
