Sleeve-TITE™ Sleeve Anchor — 304 Stainless Steel

Roll over image to zoom in

Sleeve-TITE™ Sleeve Anchor — 304 Stainless Steel

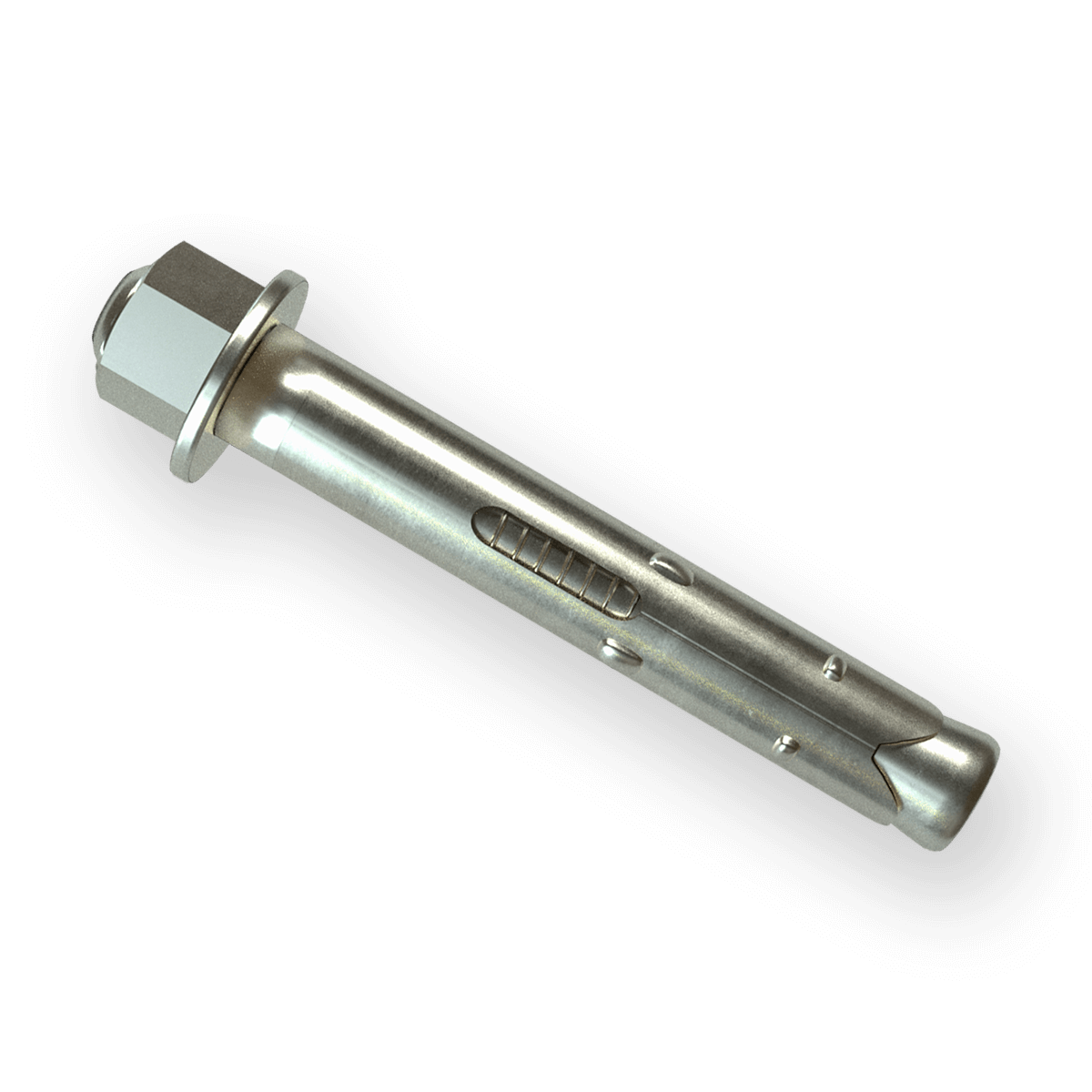

This high-strength pre-assembled expansion anchor is designed for anchoring into concrete and masonry applications. The Sleeve-TITE anchor has a 6-dimple expansion sleeve over a threaded stud bolt, which provides superior performance in all conditions.


Pack Price

$53.20

Quantity

USA

ENGINEERED IN THE USA

Ships Fast within 24 hours
Orders received before 2:00pm EST Monday through Friday usually ship the same business day. We will send an email confirming your order the day your order is received. When your order ships we will send you a second email with your paid invoice and information to track your order.

Materials / Finishes

Available in:
304 Stainless Steel
Zinc-Plated Carbon Steel

Features and Benefits

  • 6-dimple expansion sleeve allows the anchor to grip imperfections in the base material
  • Large expansion cone requires fewer rotations to achieve desired torque
  • One-piece sleeve design allows stress to be distributed over the entire contact area
  • Length identification code stamped on head to ease identification pre- and post-installation
  • Pre-assembled with nut and washer for immediate installation, eliminating missing components
  • Available in a number of head styles for a wide variety of applications

Downloads

Product Details
Installation
Catalog Number
Head Style
Anchor Size
Drill Bit Dia.
Min. Embed.
Box Quantity
Price/Box
Weight
Carton Quantity
ASAX1413
Acorn Nut
1/4 x 1-3/8
1/4
1-1/8
100
$53.20
2.65
1000
ASAX1421
Acorn Nut
1/4 x 2-1/4
1/4
1-1/8
100
$59.10
3.52
800
HSAX5612
Hex Nut
5/16 x 1-1/2
5/16
1-3/16
100
$62.30
4.26
800
HSAX5622
Hex Nut
5/16 x 2-1/2
5/16
1-3/16
100
$77.50
5.8
800
HSAX3813
Hex Nut
3/8 x 1-7/8
3/8
1-1/4
50
$46.20
3.5
400
HSAX3830
Hex Nut
3/8 x 3
3/8
1-1/4
50
$59.40
4.96
400
HSAX3840
Hex Nut
3/8 x 4
3/8
1-1/4
50
$77.30
6.08
400
HSAX1221
Hex Nut
1/2 x 2-1/4
1/2
1-1/2
25
$39
3.42
200
HSAX1230
Hex Nut
1/2 x 3
1/2
1-1/2
25
$46.80
4.02
200
HSAX1240
Hex Nut
1/2 x 4
1/2
1-1/2
25
$54.30
5.04
200
HSAX5841
Hex Nut
5/8 x 4-1/4
5/8
2
10
$43.80
4.02
80
FSAX1420
Flat Head
1/4 x 2
1/4
1-1/8
100
$105.80
2.8
800
FSAX1430
Flat Head
1/4 x 3
1/4
1-1/8
100
$115.90
3.95
800
FSAX3830
Flat Head
3/8 x 3
3/8
1-1/4
50
$96.50
4.456
400
FSAX3840
Flat Head
3/8 x 4
3/8
1-1/4
50
$107.40
6
400
FSAX3850
Flat Head
3/8 x 5
3/8
1-1/4
50
$118.90
6.93
400
FSAX3860
Flat Head
3/8 x 6
3/8
1-1/4
50
$130.50
8.32
400
BE3813
Brass Expansion Bolt
3/8 x 1-3/4
3/8
1-1/8
100
$250
600

  1. Drill the hole perpendicular to the work surface. To assure full holding power, do not ream the hole or allow the drill to wobble.
  2. Drill the hole at least 1 anchor diameter deeper than the calculated embedment depth, but not closer than two anchor diameters to the
    bottom surface of the concrete. Through drilling is allowed when 1 using sleeve anchors in hollow concrete block.
  3. Clean the hole using compressed air and a nylon brush. A clean hole is necessary for proper performance.
  4. Drive anchor through the fixture into the hole making sure the nut, or head, rests solidly against the fixture. Be sure the anchor is set to the required embedment depth.

NOTE: Always wear safety glasses. Follow drill manufacturer's instructions. Use only solid carbide-tipped drill bits meeting ANSI B212.15 diameter standards.
