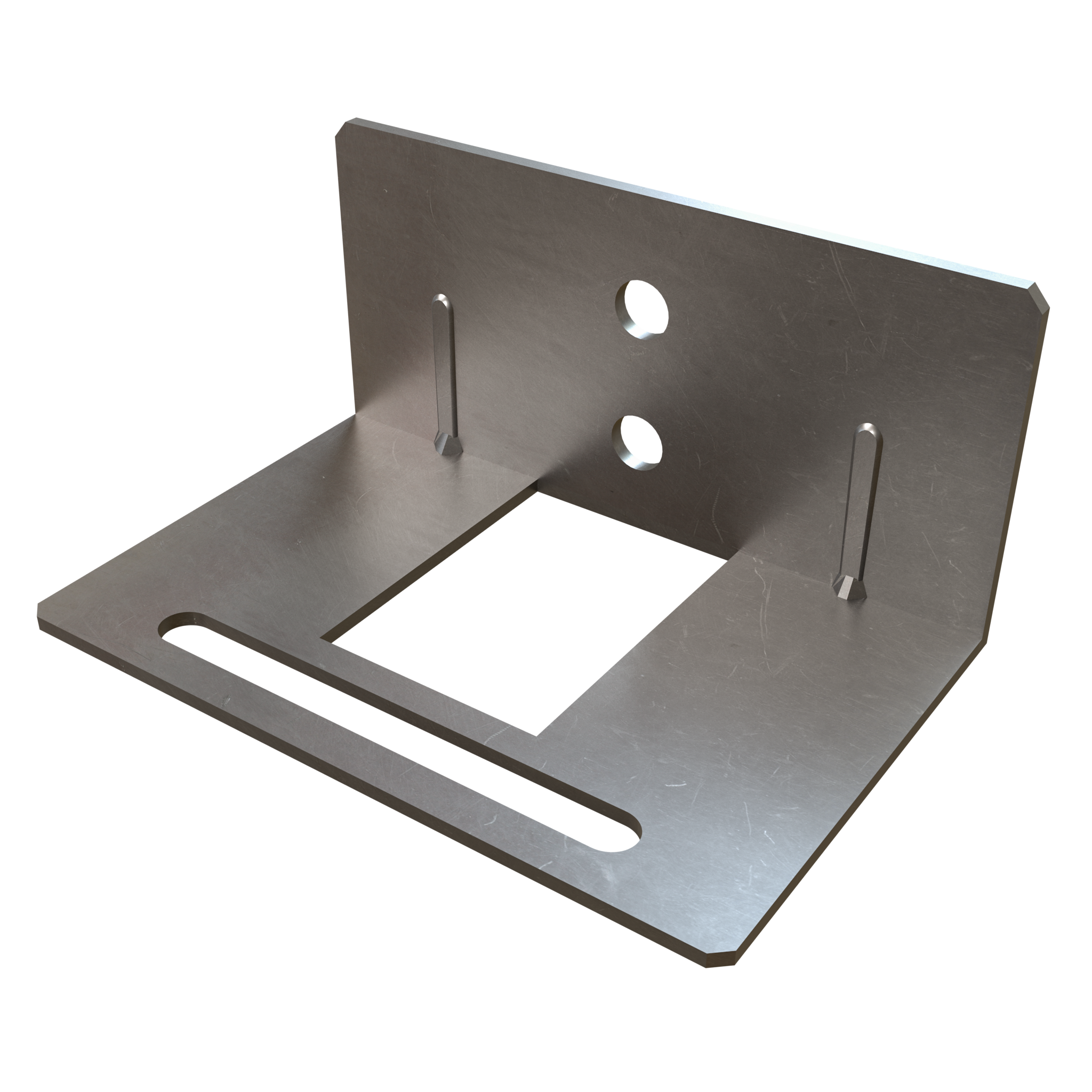

Double Pintle Plate Veneer Anchor (213) - RJ-711

#213 Double Pintle Plate Veneer Anchors are attached directly to the backup system. Insulation/mineral wool is then placed above and below the horizontal tabs.Works with the following insulation thicknesses: no insulation, 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4".

See Double Pintle Wire Tie (282) for the veneer wire ties.

Pack Price

$585.00

Quantity

USA

ENGINEERED IN THE USA
Special Order - Ships Fast
Special order items are usually shipped within 1-5 days. Please contact us for an updated lead time. In most cases items are in stock. If an item is out of stock we can produce the part quickly for your project. When you place an order, we will notify you immediately with an updated lead time.

Materials / Finishes

Open Icon Close Icon
  • 304 Stainless Steel
  • Hot-Dip Galvanized After Fabrication

Features and Benefits

Open Icon Close Icon
  • Attaches directly to the backup system
  • Standard thickness: 14 gauge plate
  • Works with the following insulation thicknesses:
    • No insulation, 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4"

Downloads

Open Icon Close Icon

 Specification PDF
 Specification Doc
 Submittal Sheet

Product Details
Installation
Catalog No.
Material
Insulation Thickness (in.)
Plate Thickness (Gage)
Box Quantity
213P0H
Hot-Dip Galvanized
0
14
350
213P1H
Hot-Dip Galvanized
1
14
175
213P2H
Hot-Dip Galvanized
2
14
175
213P3H
Hot-Dip Galvanized
3
14
175
213P4H
Hot-Dip Galvanized
4
14
175
213P0S
304 Stainless Steel
0
14
350
213P1S
304 Stainless Steel
1
14
175
213P2S
304 Stainless Steel
2
14
175
213P3S
304 Stainless Steel
3
14
175
213P4S
304 Stainless Steel
4
14
175

Install as specified in applicable masonry section(s).
