Double Expansion Shield

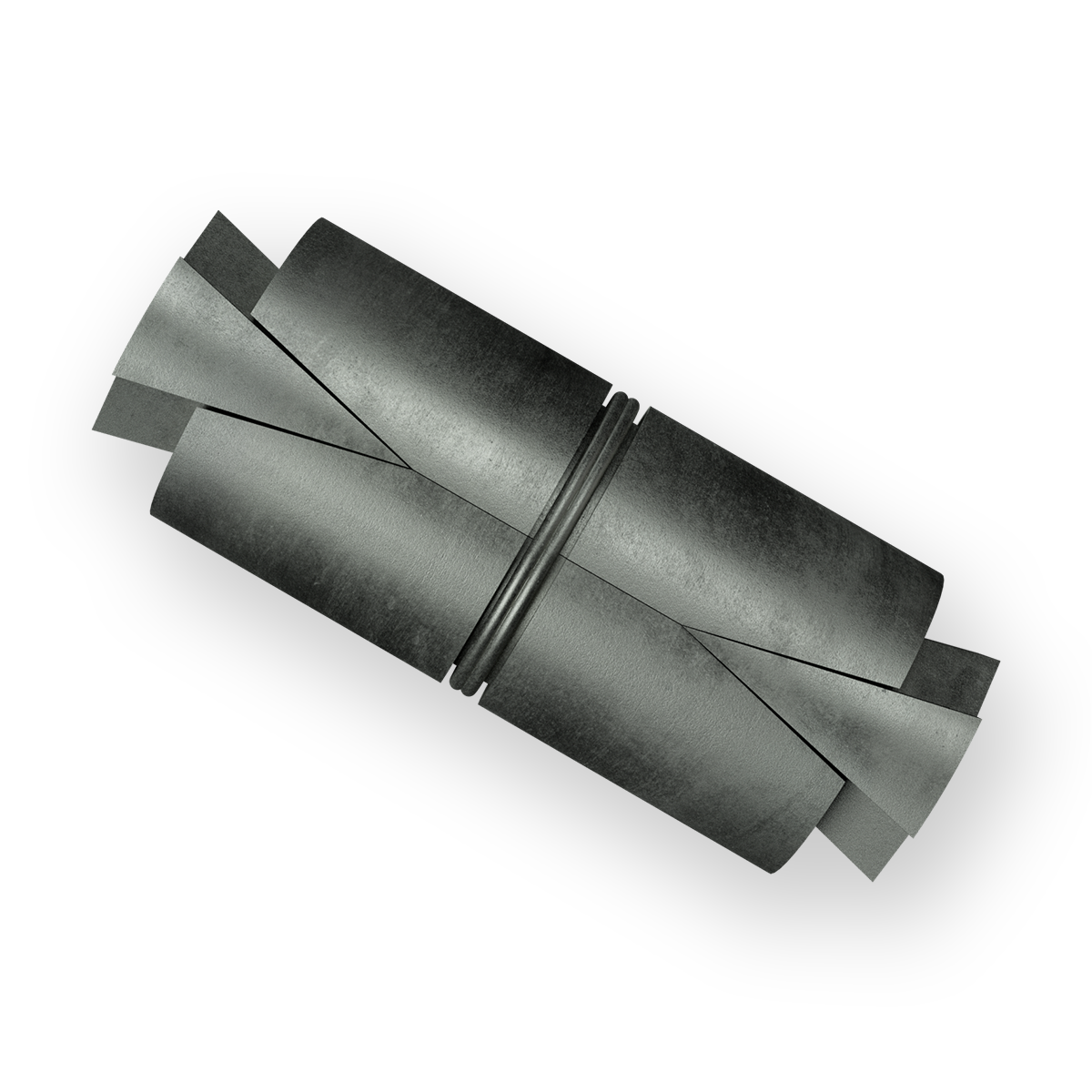

Our corrosion-resistant Double Expansion Shield anchor is recommended for anchoring into base materials of questionable strength. The expansion cones at each end of the anchor are draw in as the machine bolt is tightened, ensuring a consistent and even expansion along the entire anchor.

Pack Price

$27.20

Quantity

USA

ENGINEERED IN THE USA

Ships Fast within 24 hours
Orders received before 2:00pm EST Monday through Friday usually ship the same business day. We will send an email confirming your order the day your order is received. When your order ships we will send you a second email with your paid invoice and information to track your order.

Materials / Finishes

  • Zamac alloy

Features and Benefits

  • Eliminates high-stress points that can be detrimental in medium-hardness materials
  • Expands fully for high gripping power
  • Ideal for static, vibratory and shear loads where the joint is subject to side pressure of vibration
  • Bolt can easily be removed during service work without replacing the anchor

Downloads

Product Details
Installation
Catalog Number
Drill Bit Dia.
Thread Size
Anchor Length
Box Quantity
Carton Quantity
DES14
1/2
1/4 - 20
1-3/8
100
1000
DES56
5/8
5/16 - 18
1-5/8
50
500
DES38
3/4
3/8 - 16
2
50
400
DES12
7/8
1/2 - 13
2-1/2
25
200
DES58
1
5/8 - 11
2-3/4
25
200

  1. Drill hole of recommended diameter (slightly deeper than length of shield).
  2. Clean the hole using compressed air and a nylon brush.
  3. Install shield flush with surface of hole threaded side down. Double shield should be flush to slightly below masonry.
  4. Place fixture. Insert machine bolt through fixture into shield and tighten.

**  A deep setting increases holding power of masonry. If desired, place a pipe sleeve between shield and fixture being attached.

NOTE: Always wear safety glasses. Follow the drill manufacturer's safety instructions. Use only solid carbide-tipped drill bits meeting ANSI B212.15 diameter standards.
